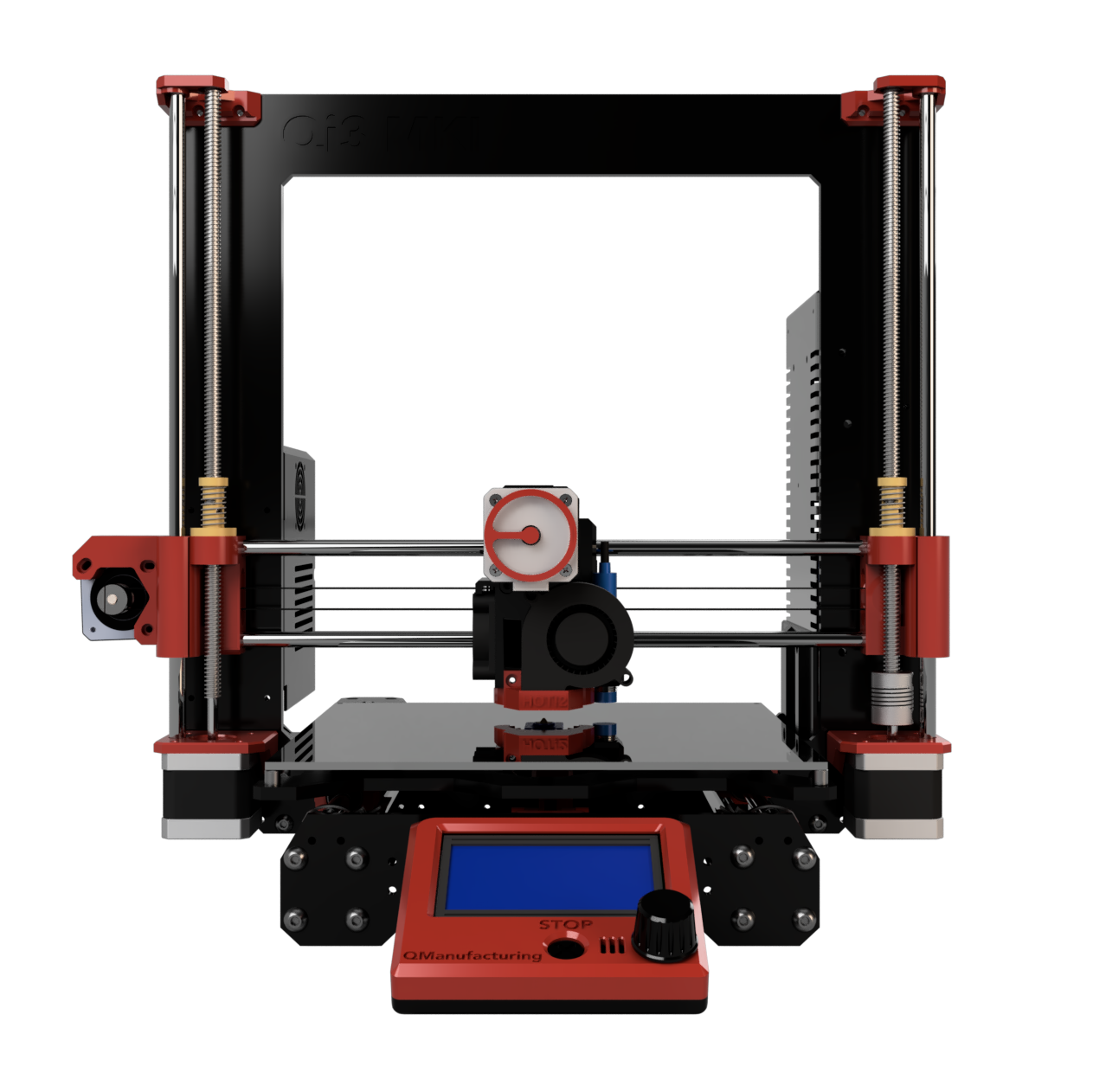

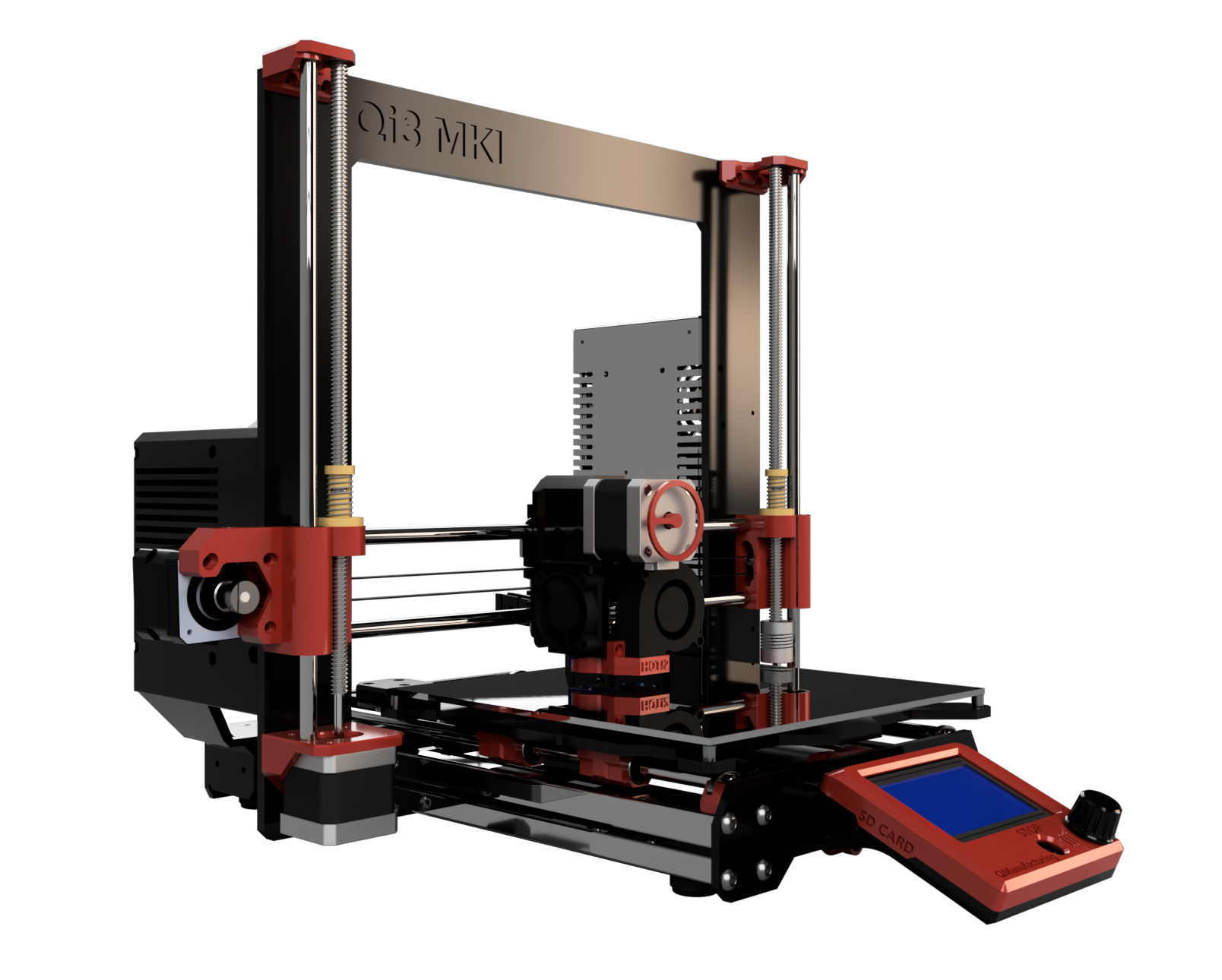

A direct extruder that can print any material. A powerfull and blazing-fast chip at the heart. A large graphical display. A Strong, rigid and elegant frame. A reliable powersupply that's equipped with advanced saftey features. And perfect print quality. Welcome to a new era of Egyptian 3D Printers.
Based on the award-winning PRUSA i3 MK3. The original design was optimized to fit components available in Egyptian market, while adding a set of new features and perfectly tuning the firmware for the hardware. This is how Qi3 was born, and the print quality is just perfect!
Proudly Made in Egypt

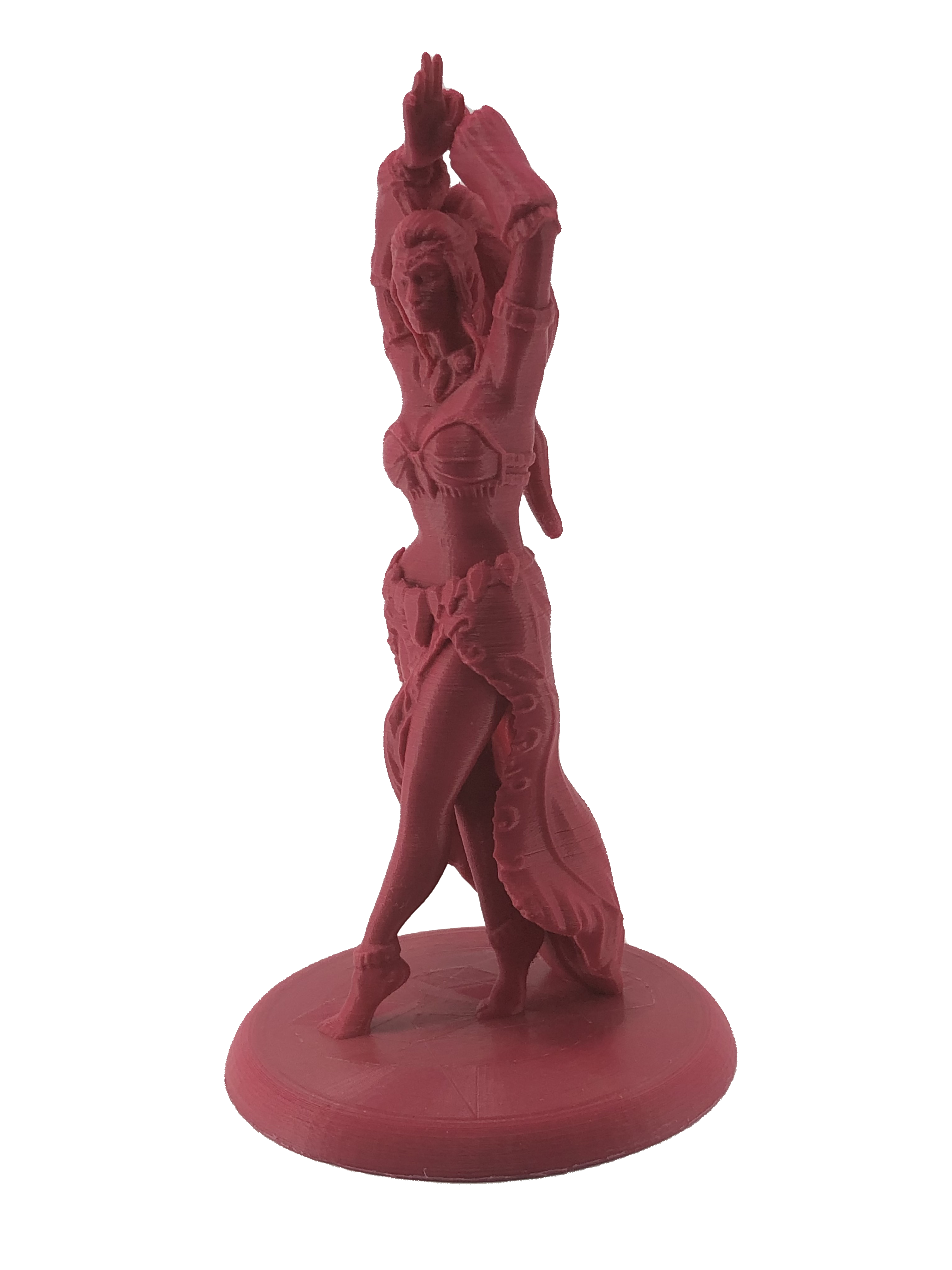

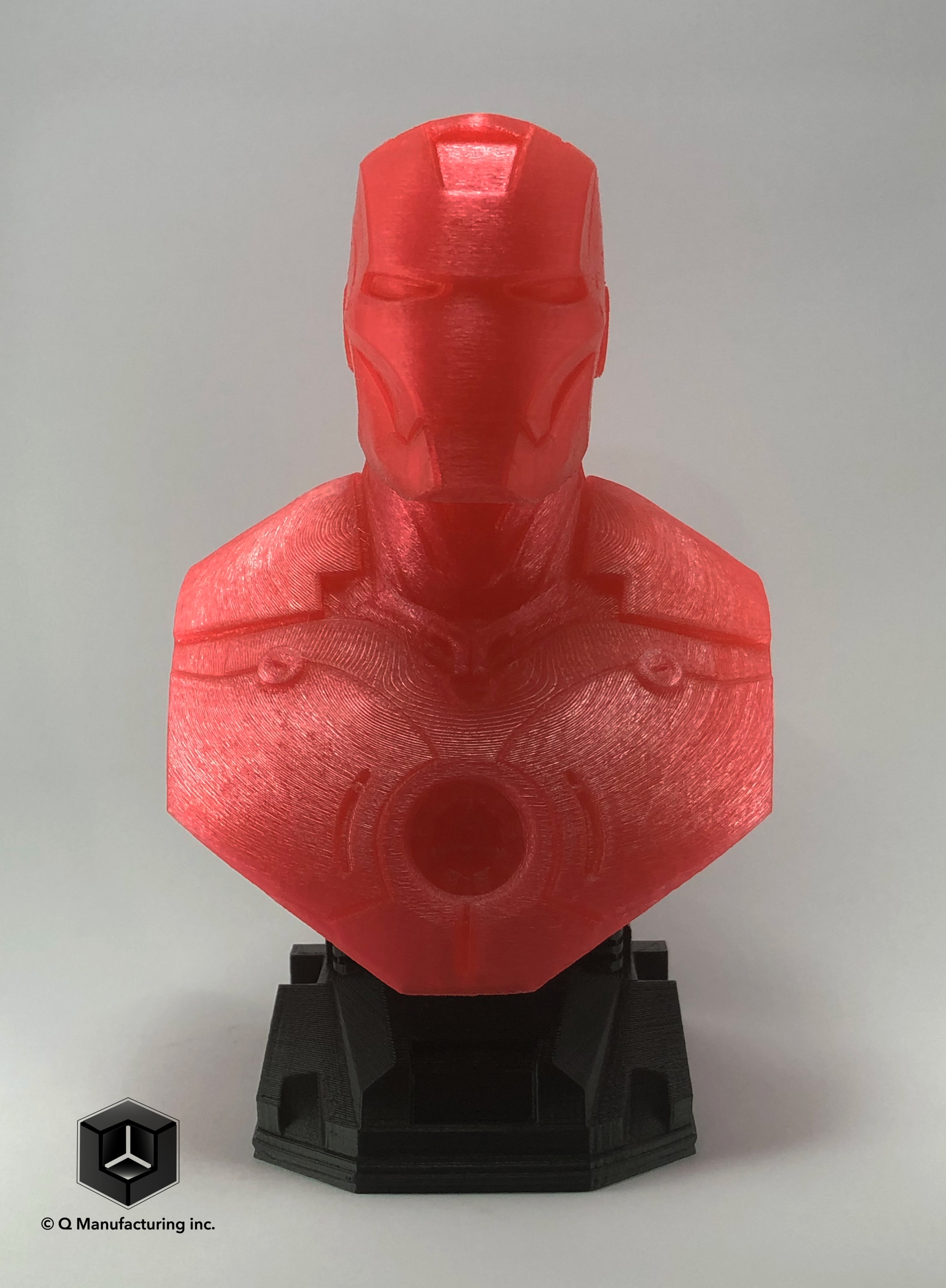

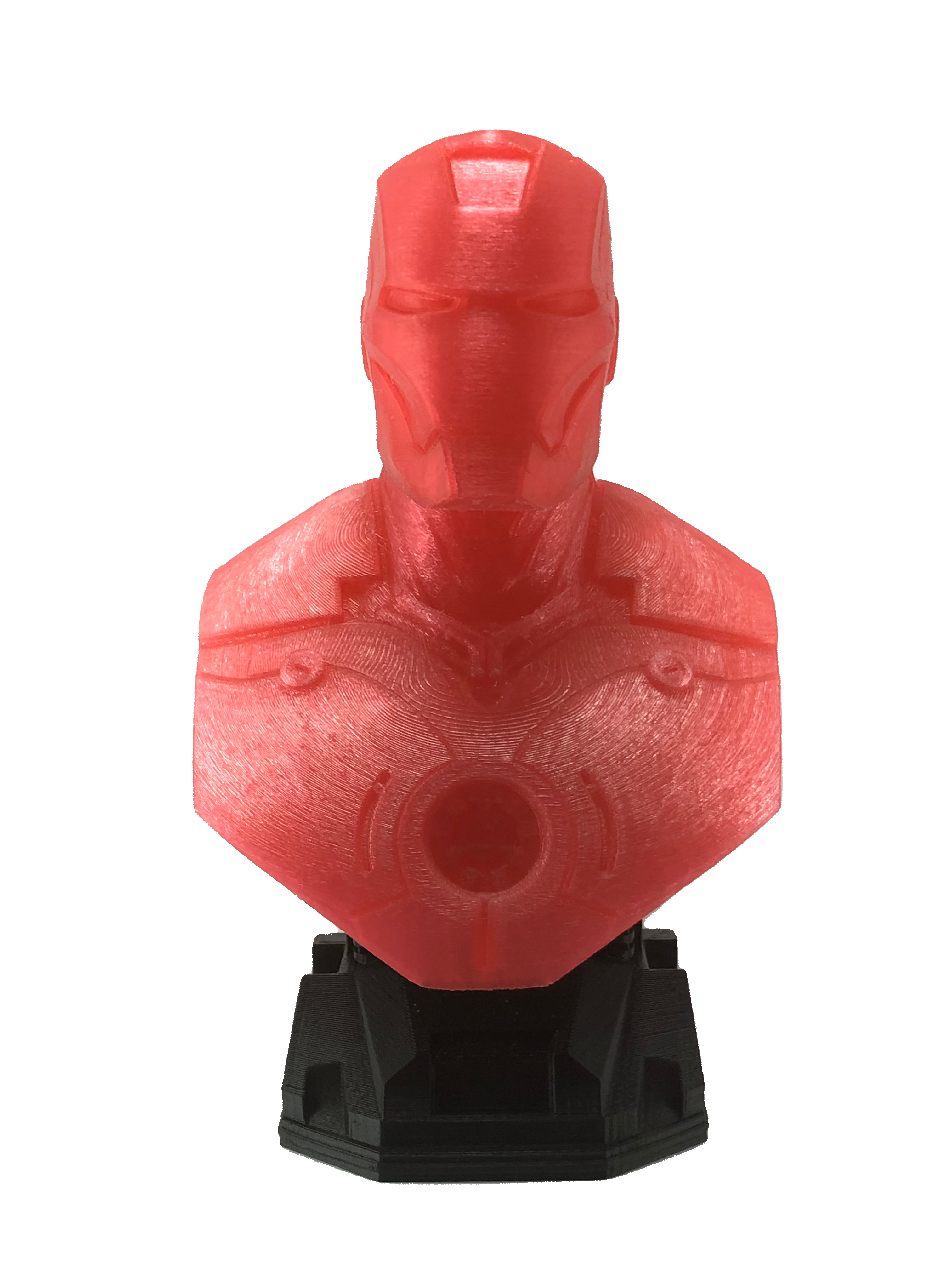

Qi3 MKI prints amazing quality. Each machine we deliver comes perfectly calibrated and adjusted to perfection. And the result is a print quality that we are very proud of. You can see for yourself some of the amazing models we printed in our gallery.

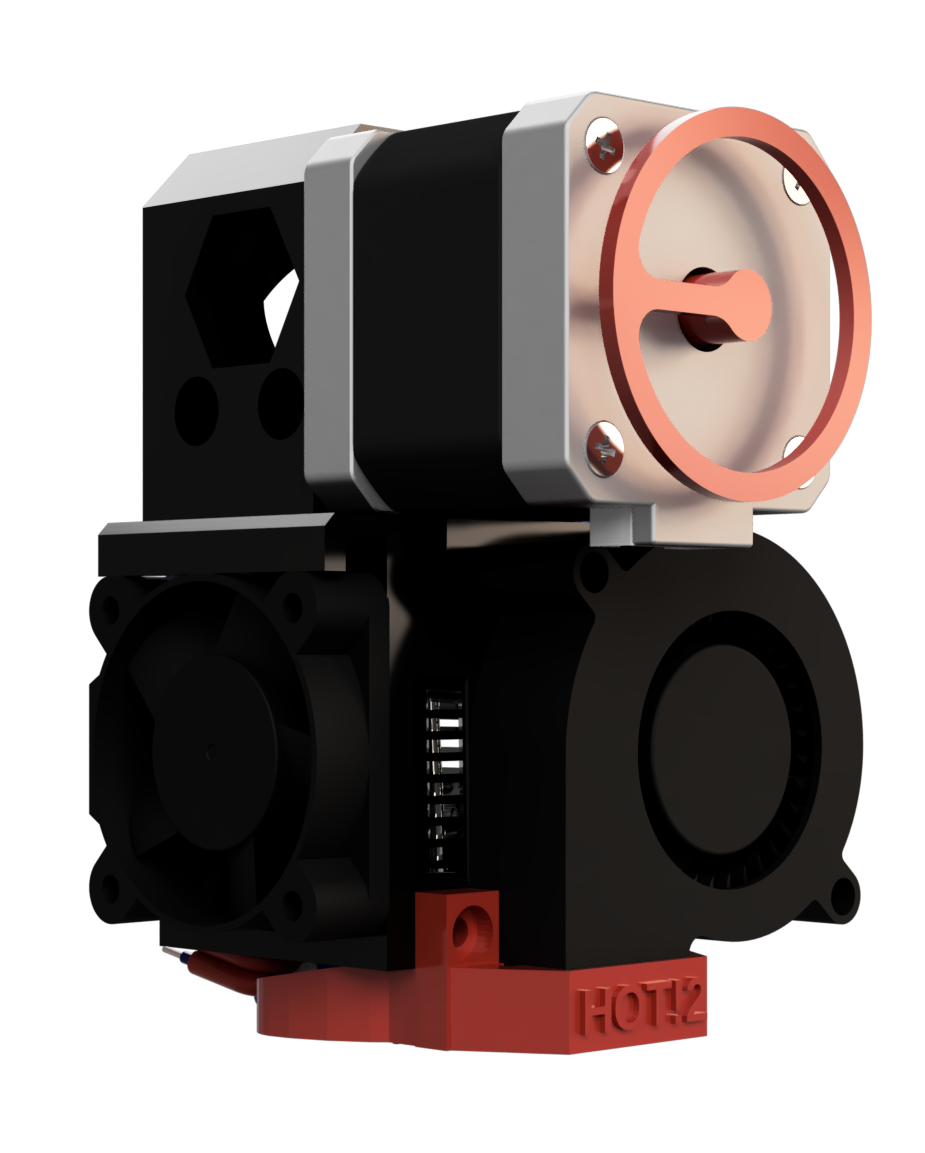

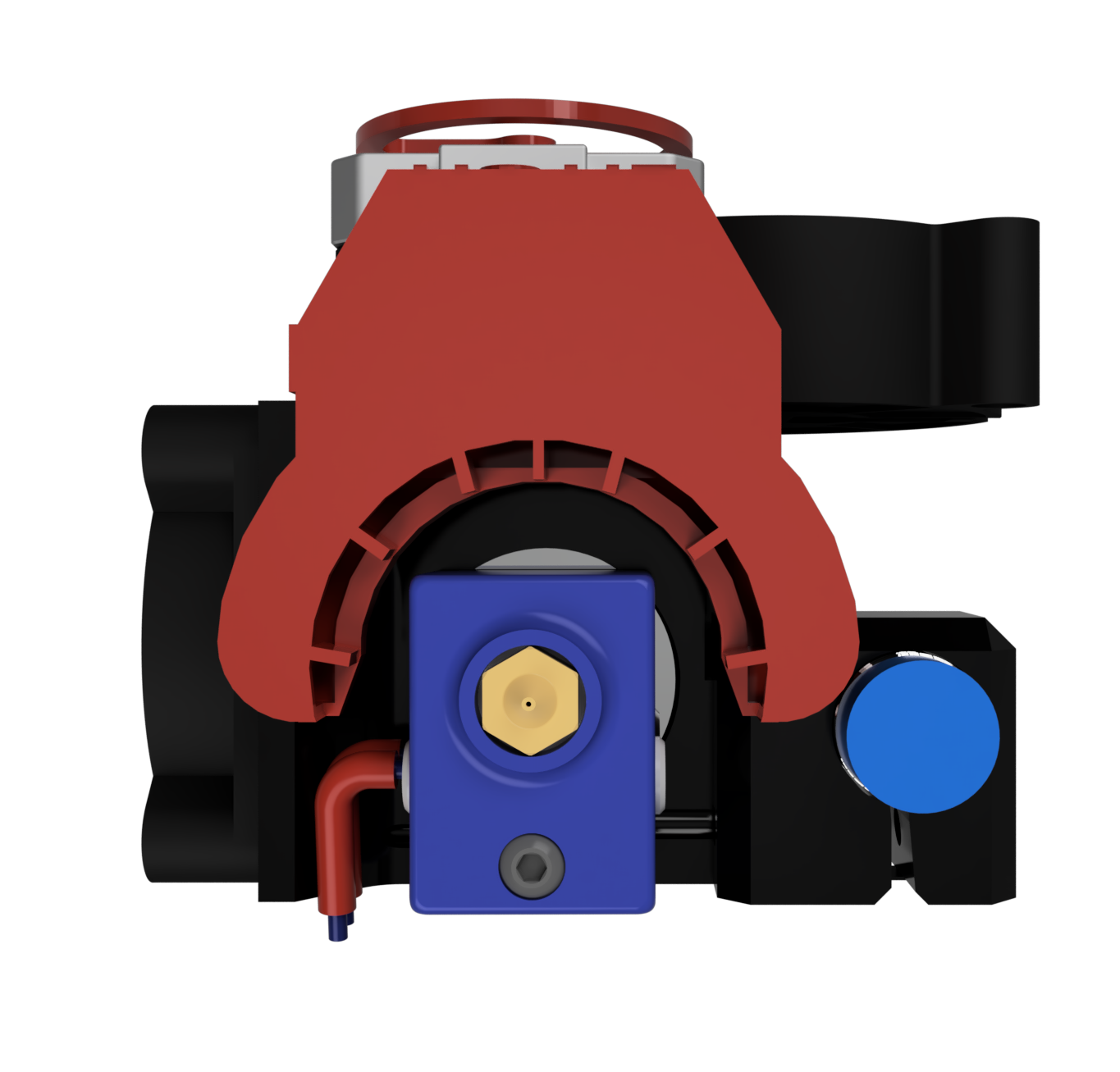

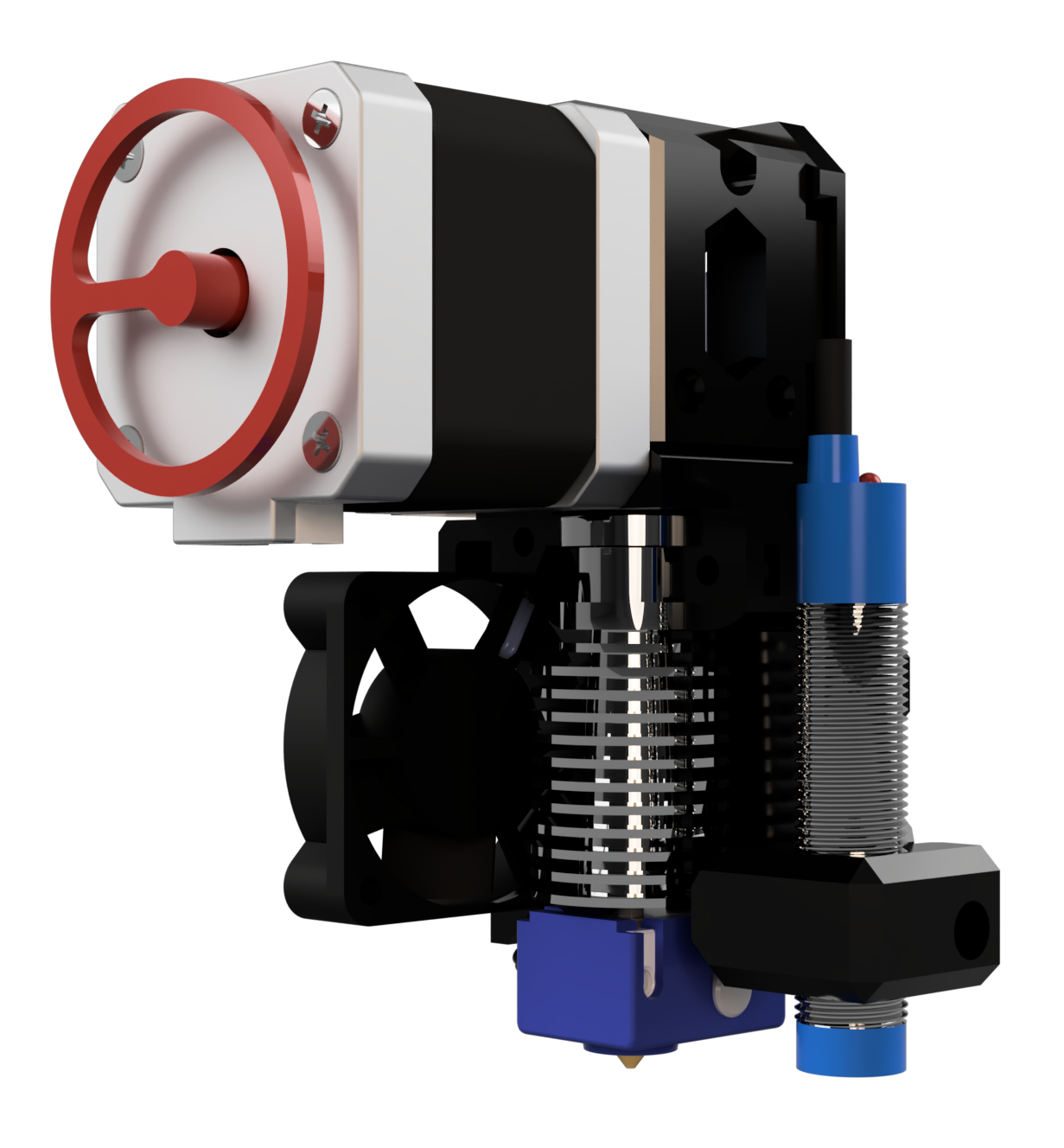

Qi3 features our own direct exturder, that uses MK8 brass gear along with a spring-loaded v-groove pulley to apply easily adjustable tension on the filament from both sides.
The Excellent thermal design allows printing temperature up to 290°C. And the equipped inductive probe makes manual bed leveling history!
Features a high-flow part cooling fan that makes printing bridges and overhangs a piece of cake. And what a pleasent experience to see the extruder movement in action, thanks to the extruder indicator.

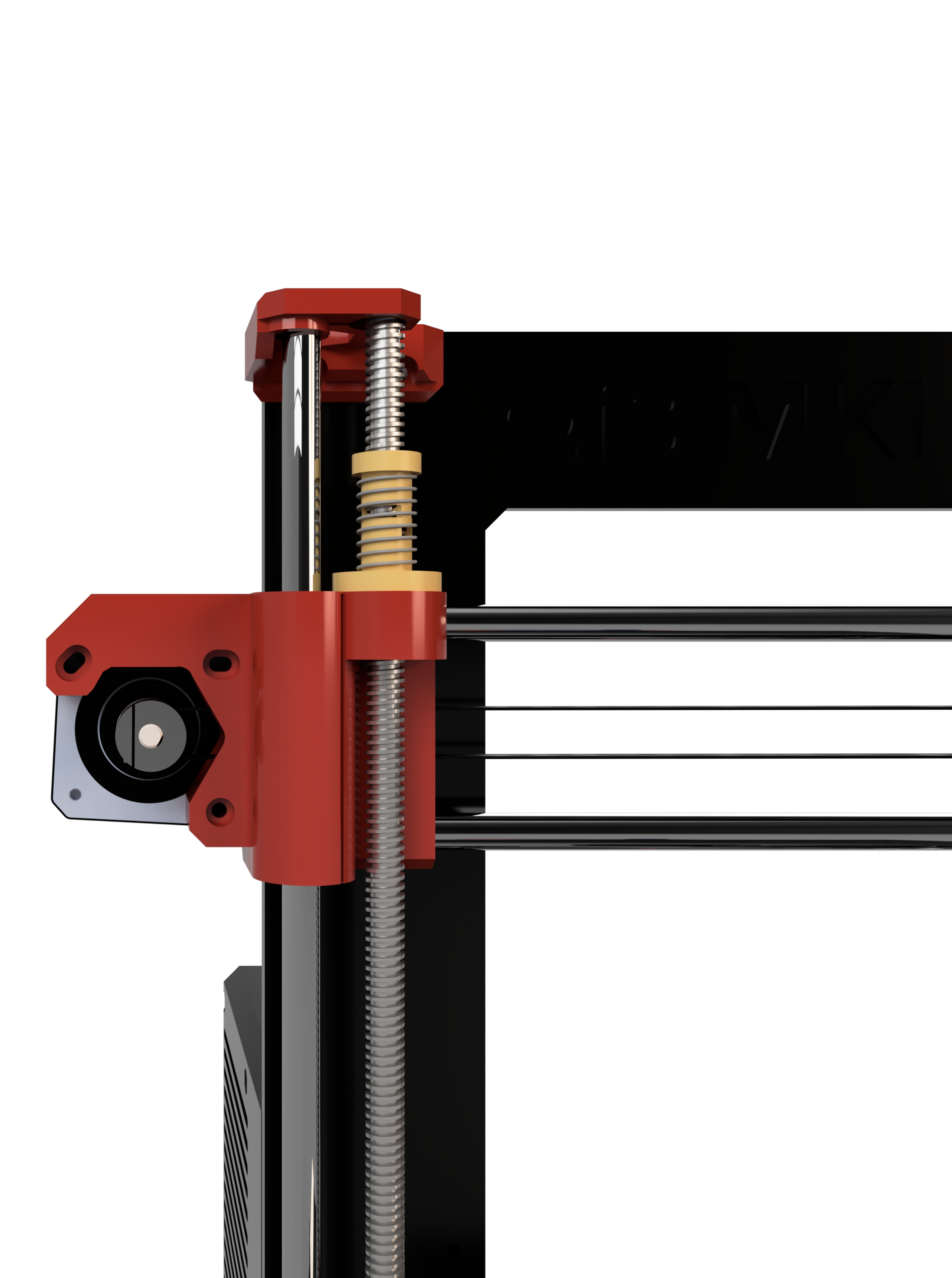

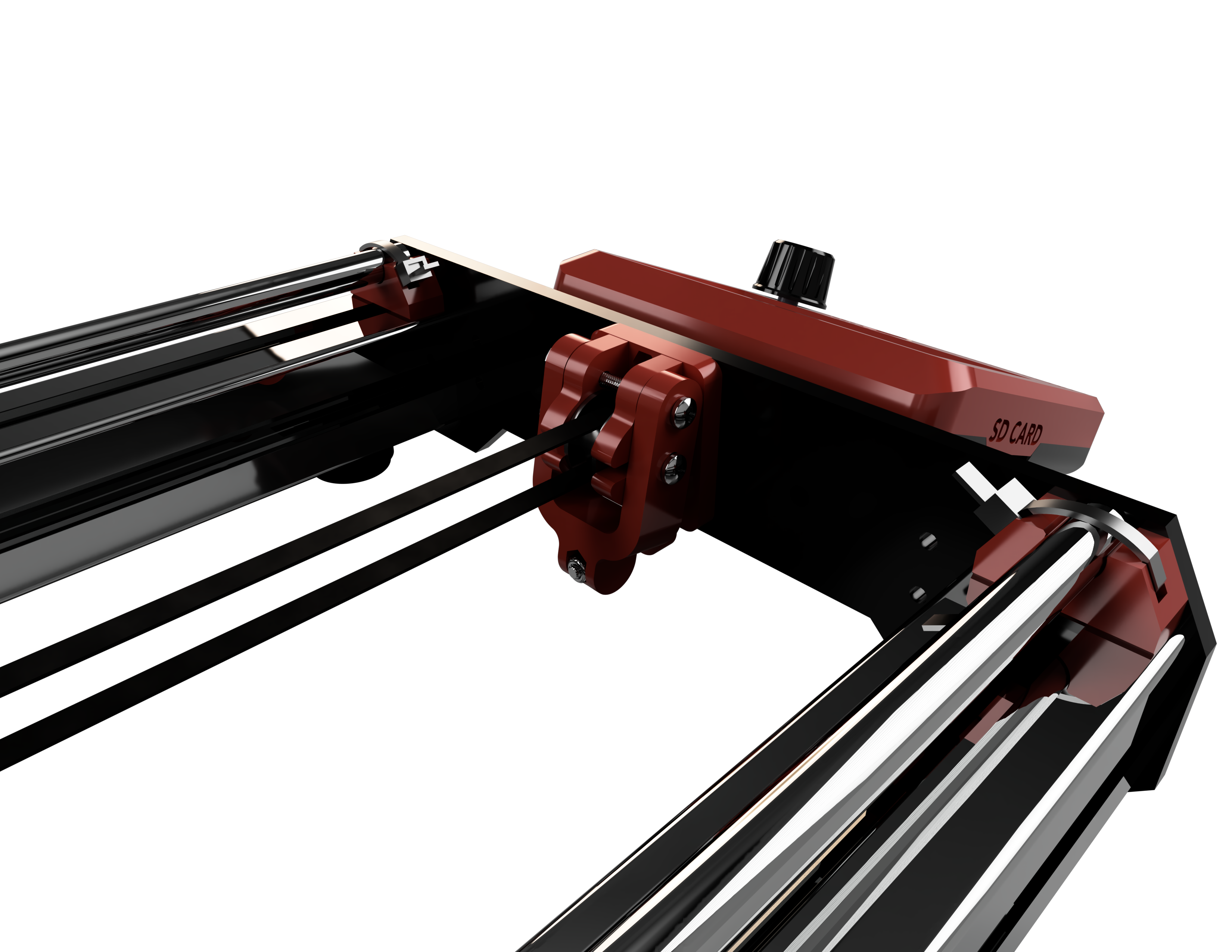

Easily adjust tension of X and Y belts
Tap
the
photos to see it in action!

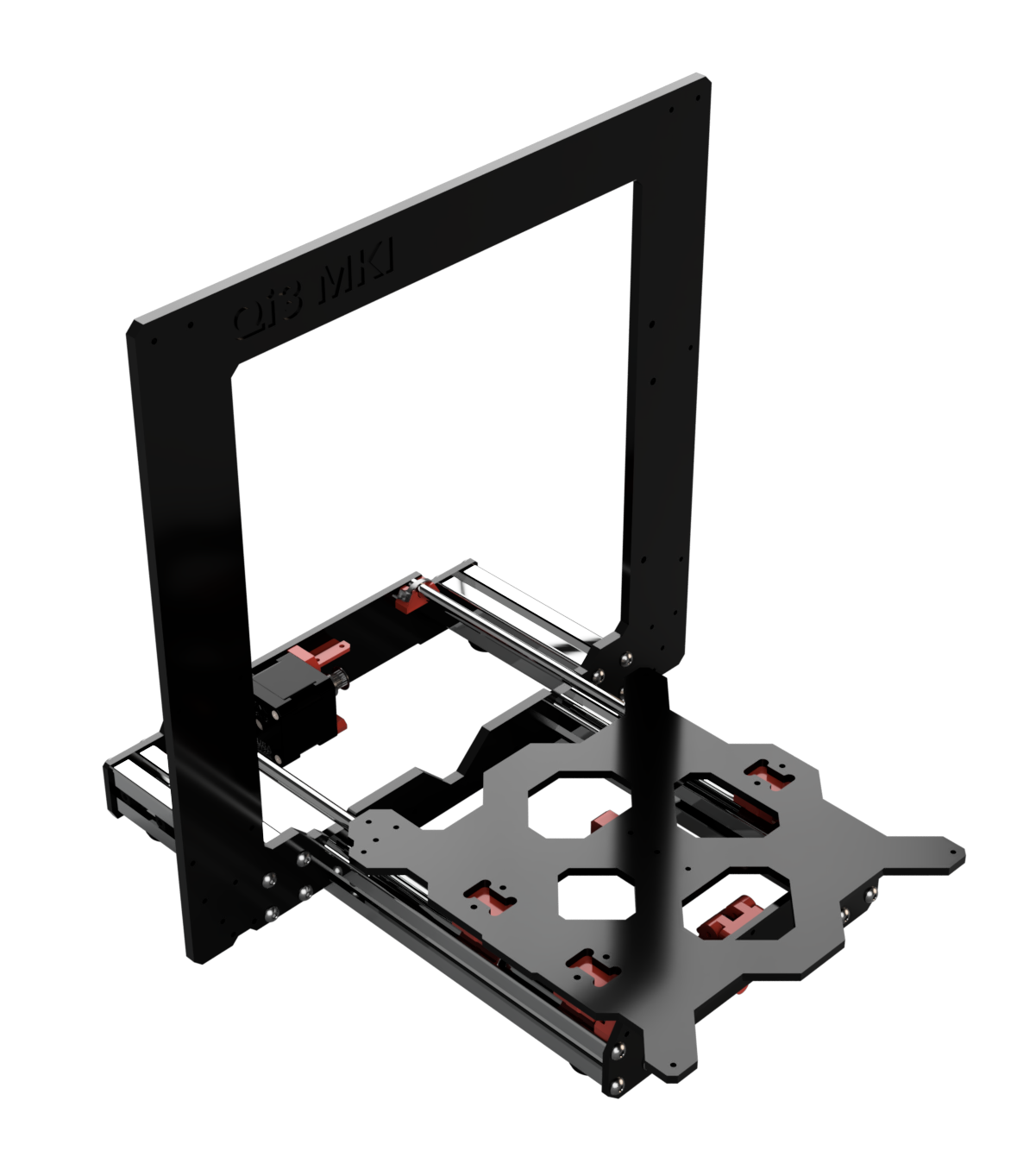

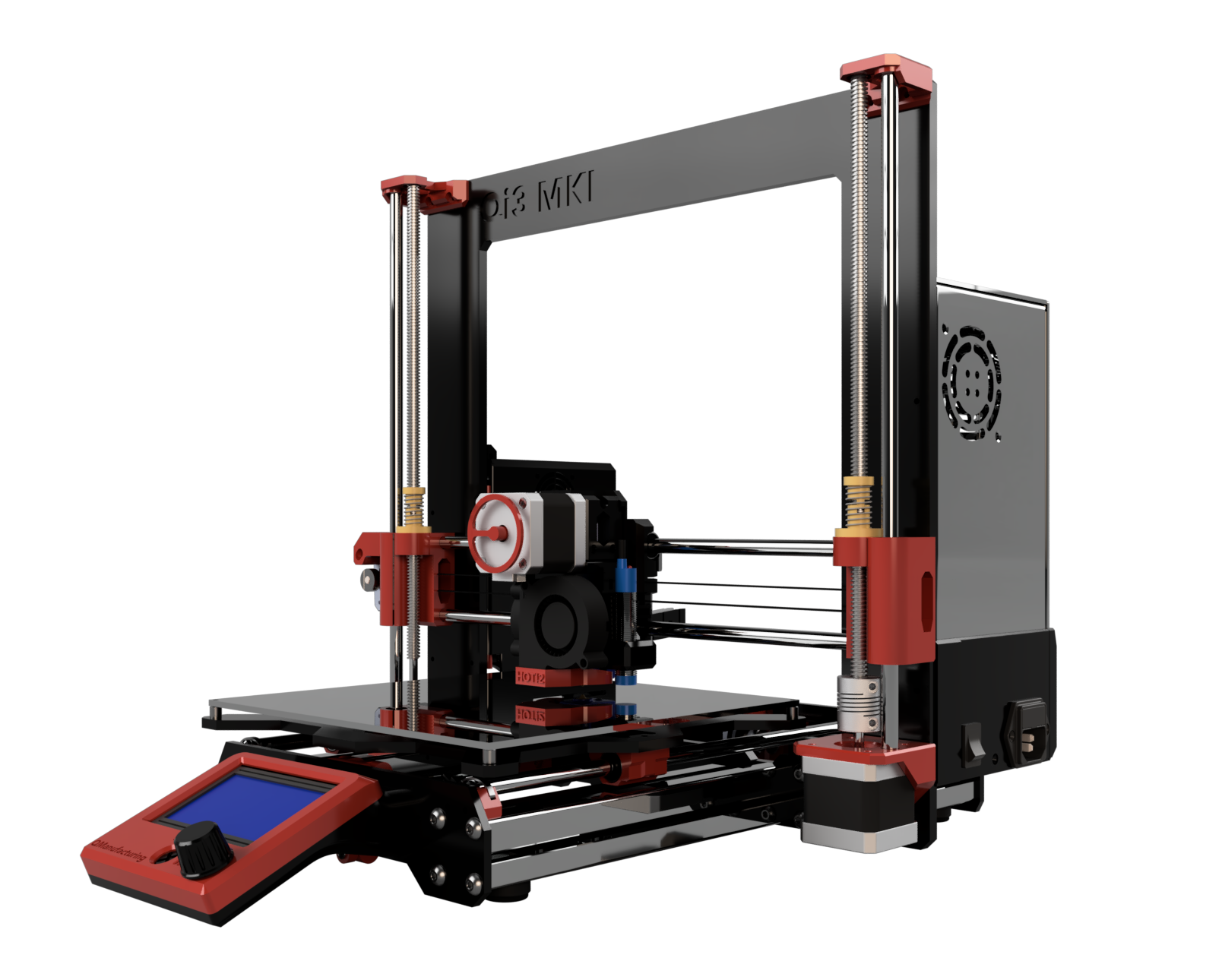

Qi3 feature a strong frame that carefully balances between rigidity and flexibility with no compromising on solidity. The frame is made of thick acrylic sheets and aluminum extrusions, features anti-backlash nuts, belt tensioners, high quality bearings and carefully placed vibration dampers. The result is a very precise gantry system that produces amazing print quality.

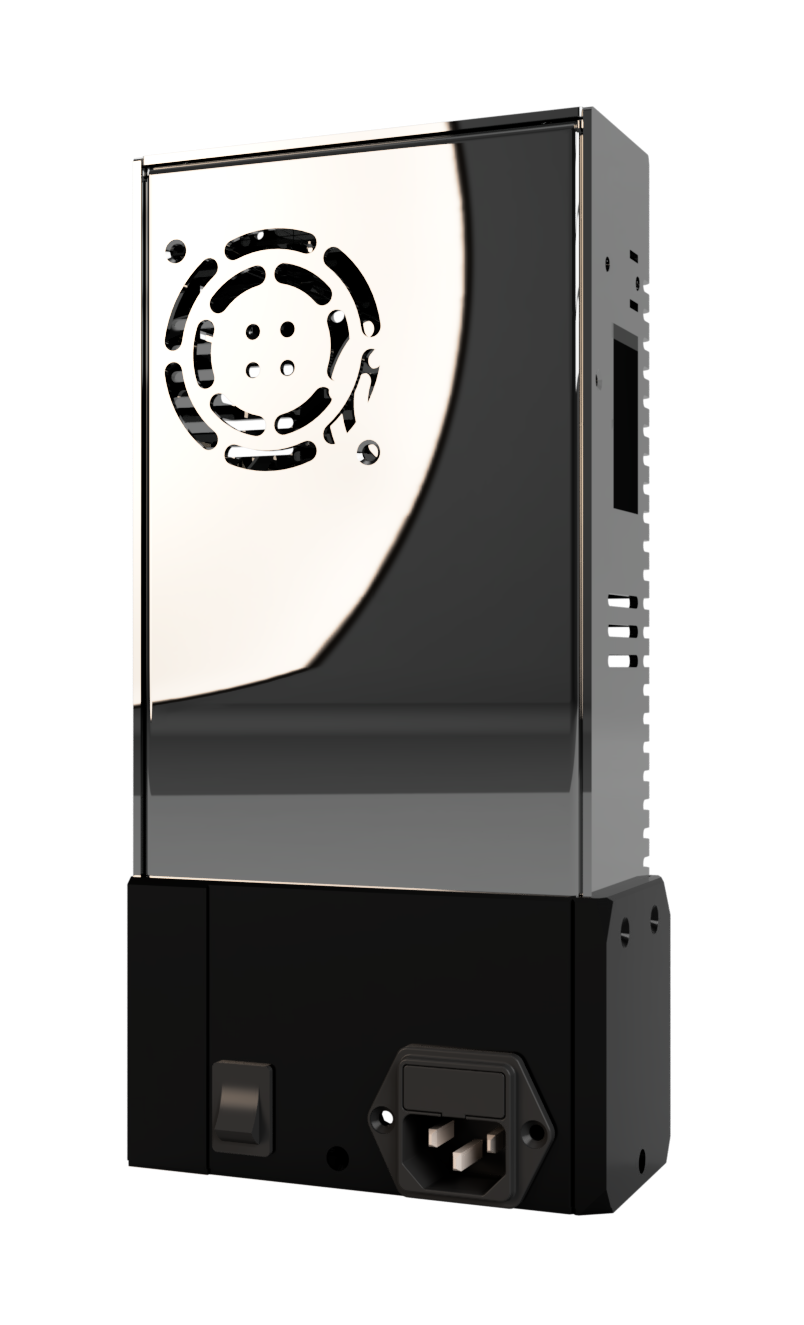

Reliable and extermely safe powersupply
Enclosures are not a problem!

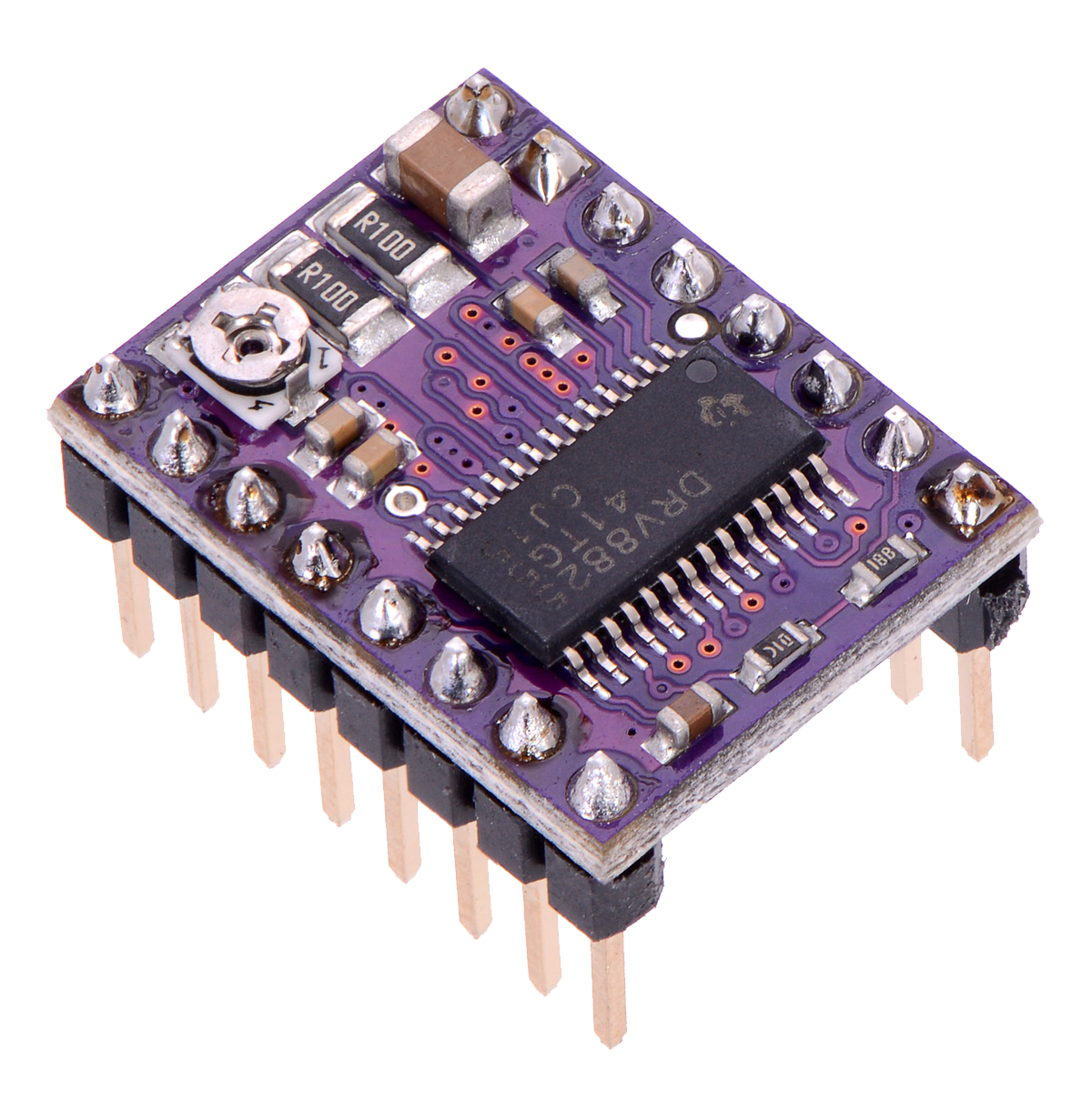

Powerful driver with 32 micro stepping
Layer height down to 0.05mm

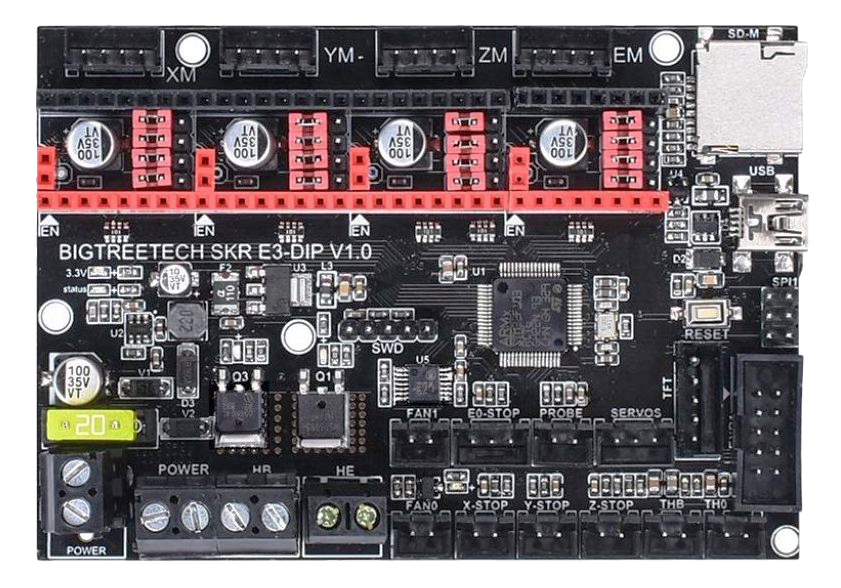

32-bit Motherboard
Blazing fast operation
No host required, print directly from SD

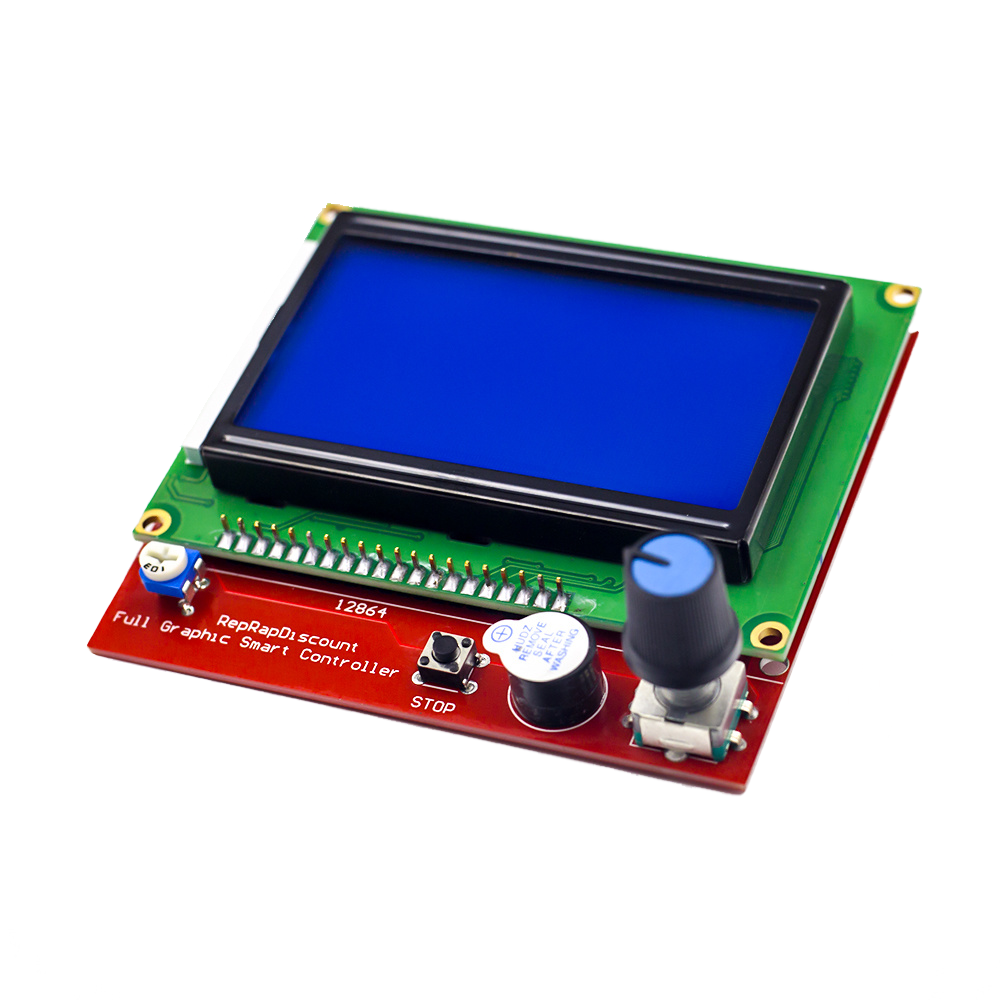

Control all printer options using the screen and knob, no need for a USB connection!

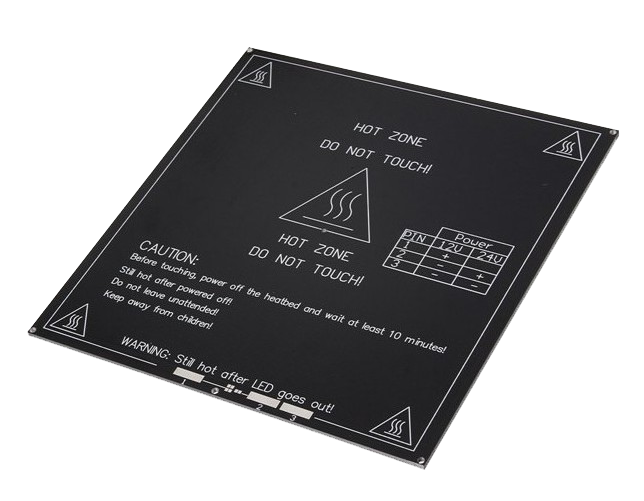

Stable temprature across the whole print surface

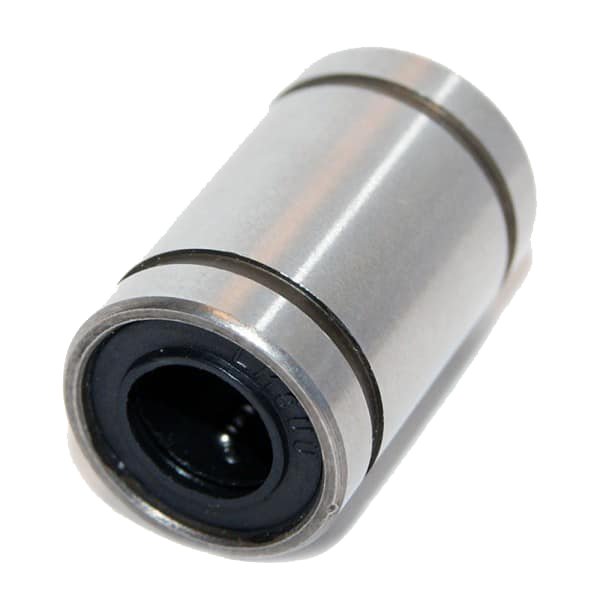

Smooth bearings

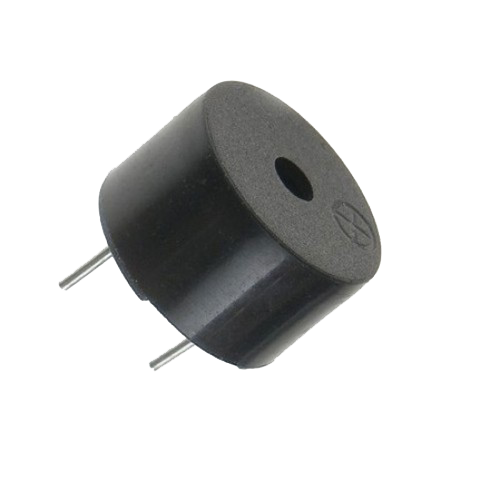

Integrated buzzer for alarms

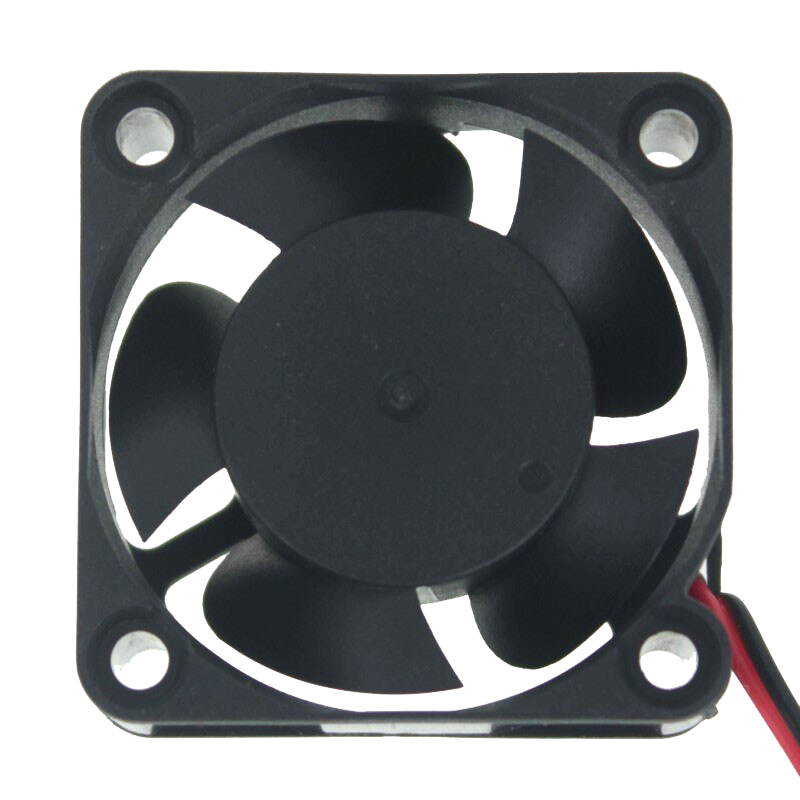

A dedicated fan for motherboard and drivers

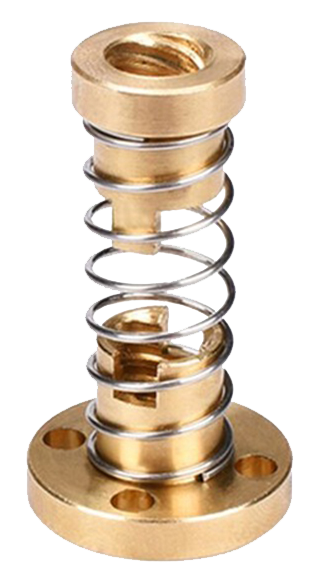

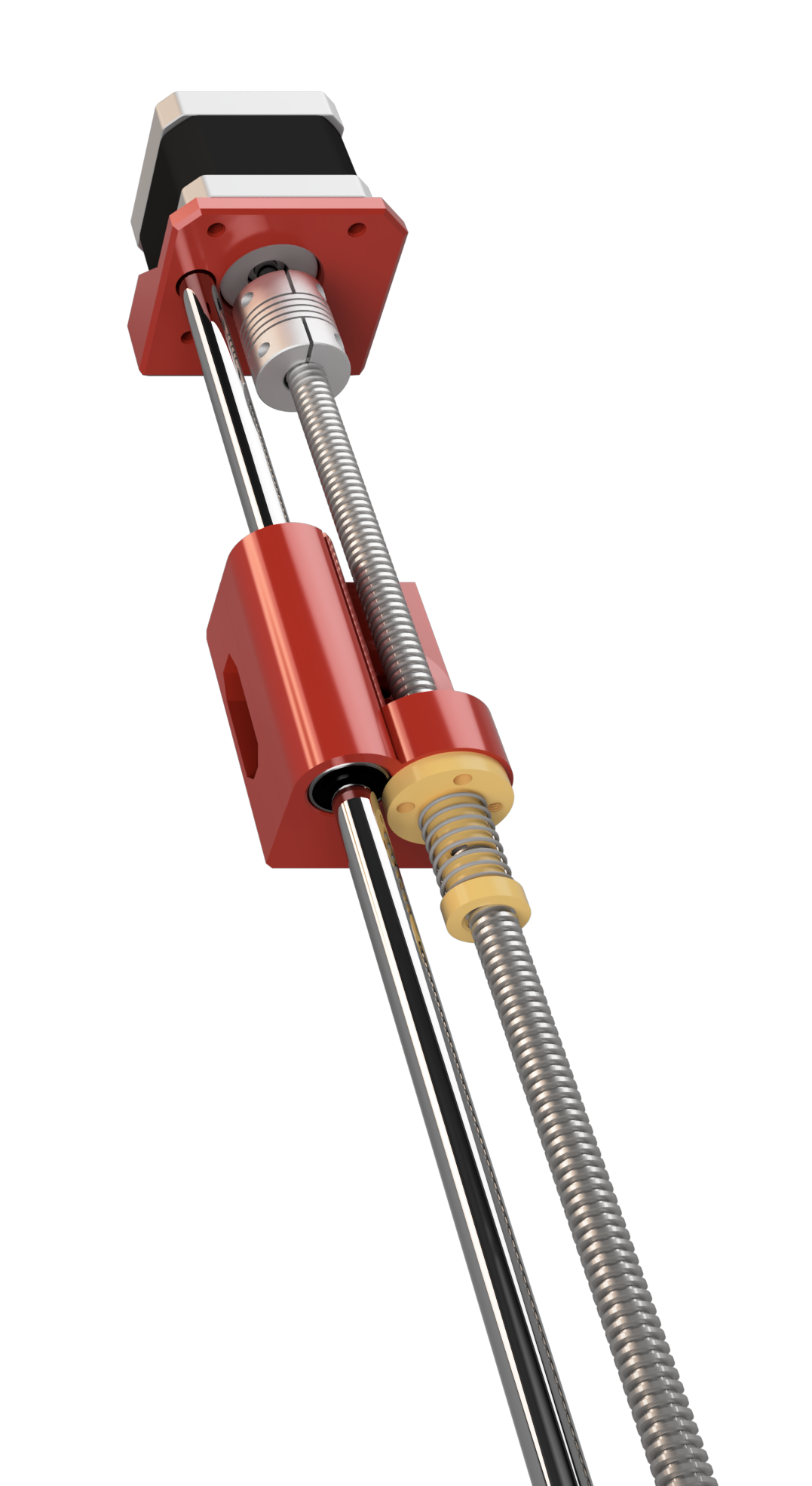

Eliminates free-play in Z-axis for a very stable & vibration-free operation
Compatible with OctoPrint
Based on Marlin 2.0

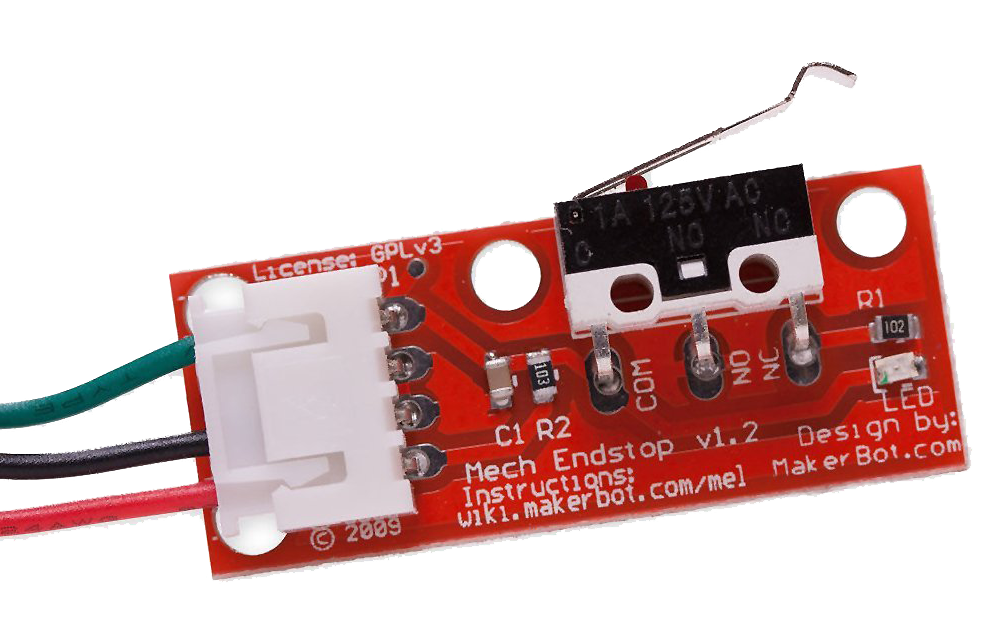

Mechanical endstops that just work
Features Marlin 2.0
Qi3 runs the firmware that drives most of
the
world's 3D printers, that is Marlin 2.0
We calibrate every machine's firmware to perfection, from
speed &acceleration to jerk calibration, PID tuning and frame skew compensation. We ensure that software
is in perfect harmony with hardware to deliver outstanding print quality.
Slic3r
Simplify3D
Ultimaker Cura
Fusion360
PrusaSlicer
| Print Technology | Fused Desposition Modeling (FDM) |
|---|---|
| Filament Diameter | 1.75mm |
| Filament Compatibility | All filament types |
| Build Volume | 21 x 21 x 21 cm |
| Layer Resolution | 50 microns (0.05 mm) |
| Nozzle Diameter | 0.4mm Customizable with sizes from 0.1mm to 1mm |
| Maximum Print Speed | 200mm/s |
| Extruder Temerature | 180°C up to 280°C |
| Bed Temperature | 50°C up to 110°C |
| Enclosure Temperature | Up to 55°C |
| Power Supply | 348W 12V 29A |
| Connection | USB SD |
| Build Surface | Aluminum |
| Frame Material | Aluminum extrusions, acrylic sheets and PETG parts |
| File Format | .gcode |

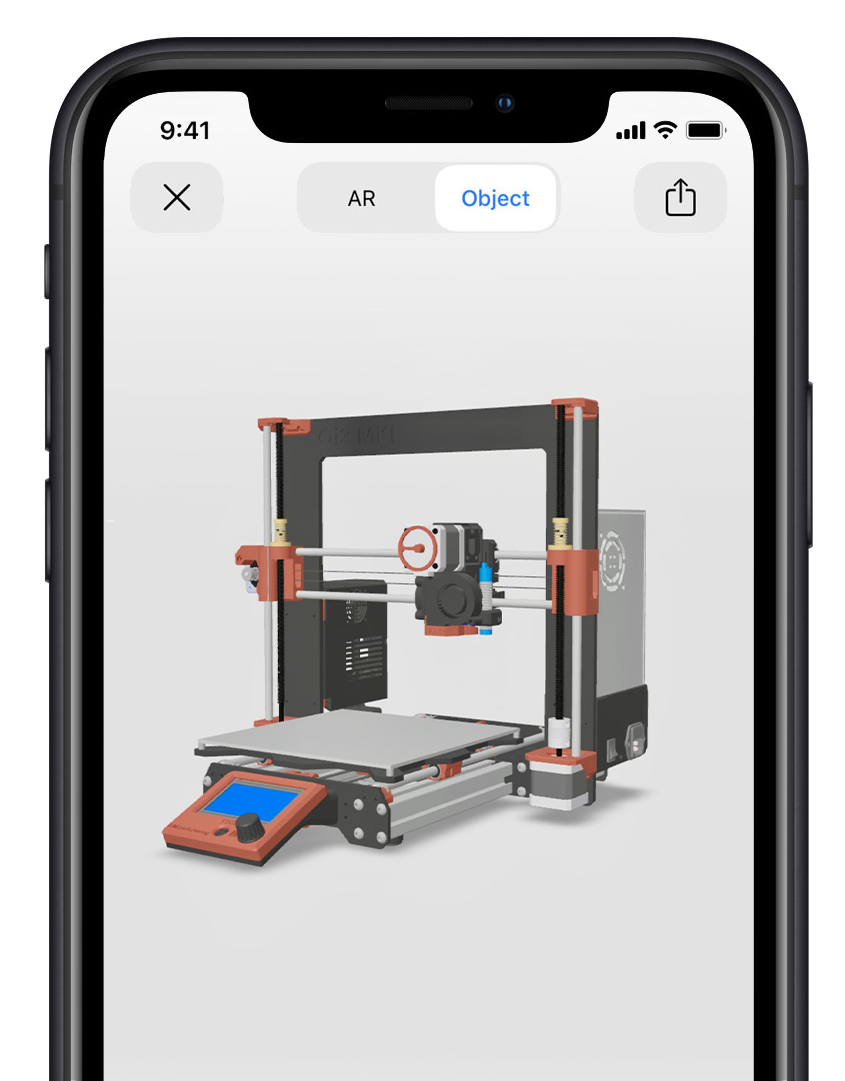

Open this page using safari on your iPhone or iPad.
